Understanding Tungsten Plate Properties

Chemical Composition and Structure

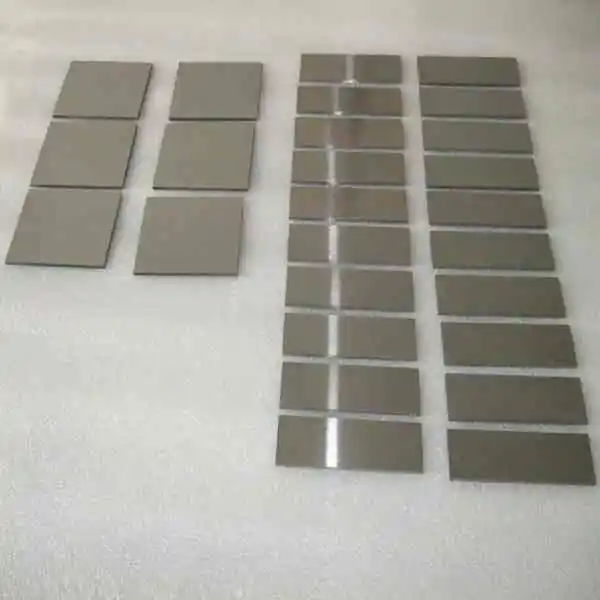

Tungsten plate, a high-density refractory metal, boasts an impressive array of properties that make it invaluable across various industries. Its chemical composition primarily consists of elemental tungsten (W), often alloyed with small amounts of other metals to enhance specific characteristics. The atomic structure of tungsten contributes to its remarkable strength and heat resistance, featuring a body-centered cubic crystal lattice that provides stability even at extreme temperatures.

Physical Characteristics

The physical attributes of tungsten set it apart from other metallic materials. With a melting point of 3,422°C (6,192°F), it maintains its structural integrity in environments where other metals would fail. Its density of 19.3 g/cm³ makes it one of the heaviest metals, surpassed only by a few rare elements. This combination of high density and thermal stability renders tungsten plate ideal for applications in aerospace, where weight and heat resistance are critical factors.

Mechanical Properties

The mechanical properties of tungsten are equally impressive. It exhibits exceptional hardness, with a Mohs hardness rating of 7.5, comparable to some of the hardest naturally occurring minerals. This hardness, coupled with its high tensile strength and low thermal expansion coefficient, makes tungsten plate resistant to wear and deformation under extreme conditions. These properties contribute to its longevity in high-stress applications, such as in the automotive industry for racing car components or in mining for durable drill bits.

Cutting Methods for Tungsten Plate

Electrical Discharge Machining (EDM)

Electrical Discharge Machining, or EDM, stands out as a premier method for cutting tungsten plate, especially when precision and intricate shapes are required. This non-contact thermal erosion process utilizes electrical discharges to remove material, making it particularly effective for hard metals like tungsten. The EDM process involves submerging the tungsten plate and a shaped electrode in a dielectric fluid. Controlled electrical pulses create sparks between the electrode and the workpiece, vaporizing small portions of the tungsten plate.

One of the key advantages of EDM for cutting tungsten is its ability to produce complex shapes with high accuracy, regardless of the material's hardness. This makes it ideal for creating components for electronics or medical equipment where precise dimensions are crucial. Additionally, EDM doesn't exert mechanical stress on the workpiece, reducing the risk of micro-cracks or deformation in the tungsten.

However, EDM does have some limitations. The process is relatively slow compared to some other cutting methods, which can impact production rates for large-scale manufacturing. It also requires specialized equipment and expertise to operate effectively, potentially increasing the overall cost of production.

Water Jet Cutting

Water jet cutting offers a versatile solution for cutting tungsten plate, particularly when thermal effects need to be minimized. This method uses a high-pressure stream of water, often mixed with abrasive particles, to erode the material. The absence of heat in this process is a significant advantage when working with tungsten plate, as it prevents thermal distortion and preserves the material's properties.

The water jet cutting process is highly adaptable, capable of cutting tungsten of various thicknesses with minimal setup changes. This flexibility makes it an excellent choice for industries that require frequent changes in cutting patterns or material thicknesses, such as in prototyping or small-batch production for the aerospace sector.

One of the primary benefits of water jet cutting for tungsten is the quality of the cut edge. The process typically produces a smooth, burr-free edge, reducing the need for secondary finishing operations. This can be particularly advantageous in applications where the cut edge of the tungsten is exposed or critical to the component's function.

Laser Cutting

Laser cutting has emerged as a highly efficient method for processing tungsten plate, especially for thinner sheets. This technique employs a focused, high-energy laser beam to melt or vaporize the material along the cutting path. The precision and speed of laser cutting make it an attractive option for high-volume production of tungsten components in industries like electronics manufacturing.

When applied to tungsten, laser cutting offers several advantages. The process is extremely fast, allowing for rapid production cycles. It also provides excellent cut quality with minimal kerf width, enabling the creation of intricate designs and tight tolerances. This precision is particularly valuable in the production of tungsten components for electrical applications or microelectronics.

However, the effectiveness of laser cutting on tungsten can be influenced by the material's high reflectivity and thermal conductivity. As the plate thickness increases, the laser's ability to penetrate and cut cleanly may be reduced. Therefore, laser cutting is often most effective for thinner tungsten or in applications where speed and precision are prioritized over the ability to cut very thick materials.

Factors Influencing Tungsten Plate Cutting

Material Thickness

The thickness of the tungsten plays a crucial role in determining the most suitable cutting method. Thinner plates, typically under 5 mm, are often well-suited for laser cutting due to the method's precision and speed. As the thickness increases, water jet cutting becomes more favorable, offering consistent performance across a wide range of thicknesses. For exceptionally thick tungsten plates or those requiring complex internal cuts, EDM might be the optimal choice despite its slower processing speed.

It's important to note that as the thickness of the tungsten increases, so does the complexity of the cutting process. Thicker plates may require multiple passes or adjustments in cutting parameters to achieve the desired results. This relationship between thickness and cutting difficulty underscores the importance of selecting the appropriate method based on the specific dimensions of the tungsten being processed.

Desired Cut Quality

The required quality of the cut is another critical factor in choosing the right method for cutting tungsten plate. Different applications demand varying levels of edge quality, dimensional accuracy, and surface finish. For instance, tungsten components used in precision electronics or medical devices may require extremely smooth edges and tight tolerances, making EDM or fine-tuned laser cutting preferable.

Water jet cutting often produces a slightly tapered edge, which may be acceptable for some applications but unsuitable for others. Laser cutting can achieve very fine cuts with minimal heat-affected zones, but the quality can degrade with increasing material thickness. EDM, while slower, consistently produces high-quality cuts with excellent surface finish, regardless of the tungsten plate's thickness.

Evaluating the post-cutting requirements is also essential. Some methods may necessitate additional finishing processes to meet specific quality standards, impacting the overall production time and cost.

Production Volume

The scale of production is a significant consideration when selecting a cutting method for tungsten plate. For high-volume manufacturing, such as in the automotive or consumer electronics industries, the speed and automation capabilities of laser cutting make it an attractive option for thinner plates. The rapid processing times and potential for integration into automated production lines can significantly enhance productivity.

Water jet cutting offers a good balance between speed and versatility, making it suitable for medium to large production runs, especially when dealing with varying thicknesses or material types. Its ability to cut without tool changes or significant setup modifications between jobs can be advantageous in flexible manufacturing environments.

For lower volume or highly specialized components, such as those used in aerospace or advanced scientific instruments, EDM's precision and ability to create complex shapes may outweigh its slower processing speed. The method's consistency and quality make it ideal for producing critical components where each piece must meet exacting standards.

Conclusion

Cutting tungsten plate demands careful consideration of various factors, including material properties, desired outcomes, and production requirements. By understanding the strengths and limitations of each cutting method—EDM, water jet, and laser cutting—manufacturers can optimize their processes for efficiency and quality. As technology advances, new techniques may emerge, further enhancing our ability to work with this remarkable material across diverse industries. If you want to get more information about this product, you can contact us at rmd1994@yeah.net.
