What Is The High Temperature Sintered Molybdenum Boat?

2024-01-05 18:00:06

   Molybdenum boat is a kind of molybdenum products. It is also used to evaporate molybdenum boats or coated molybdenum boats. It is a kind of high temperature resistant utensils. Molybdenum boat is made by stamping molding of molybdenum sheet at high temperature. According to the different processing methods, it is divided into different types including punching boat, folding boat, welding boat and riveting boat. It has good conductivity, heat conduction, high temperature resistance, corrosion resistance and wear resistance. Therefore, it is mainly used in coating technology, electronic industry, electric power engineering and other fields, such as capacitor sintering, vacuum heat evaporation, nuclear fuel sintering, thermocouple shell, etc.

 The high temperature sintered molybdenum boat is mainly used in vacuum furnace, its use temperature can reach about 1700-2000 C, mainly doping a certain amount of rare earth elements in molybdenum powder, to improve the high temperature strength of molybdenum and to expand the scope of the use of molybdenum boat.Now the molybdenum boat used in the vacuum furnace industry usually has two kinds of material: one is molybdenum boat produced by pure molybdenum, and the high temperature can reach about 1100 degrees. It is used as a melting device for rare earth materials and a utensil for sintering tungsten oxide. The two is the molybdenum alloy boat made of molybdenum lanthanum alloy and TZM alloy, which is used to meet the needs of higher temperature, and the heat resistance can reach about 1700-2000 degrees.


   The preparation process of molybdenum boat is made of molybdenum plate with a thickness of 3-6mm, and then made molybdenum boat by welding and riveting.

   The use of molybdenum boat: mainly used in coating technology, electronic industry, electric power engineering, such as vacuum heat evaporation (stamping evaporation boat), capacitor sintering, nuclear fuel sintering, thermocouple shell, etc. In fact, it is a kind of high temperature resistant utensils, which will be used in vacuum furnaces and glass furnaces. Compared with molybdenum crucibles, the structure is simple and the cost is low.Molybdenum boats are often used in high temperature heat treatment industries, such as vacuum furnace, ammonia furnace, industrial furnace and other high temperature furnaces.

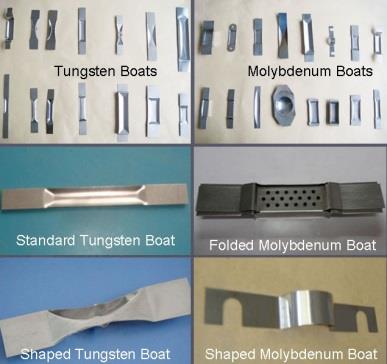

 Molybdenum Boats.jpg

  Baoji yuanda company supplies high temperature molybdenum boat, not only the price is substantial, but the quality is excellent. The wholesale price of molybdenum boats is more favorable. If you have any questions, please feel free to contact us. We will serve you wholeheartedly.
